Automatic Infrared PIR Motion Sensor Switch Occupancy ON OFF Light
main technical parameters
| Working voltage | AC170V - AC250V 50 hz |
| Load function | 200 w or less four wire system |
| Induction distance | 5-12 meters |
| Induction Angle | around 120 degrees and 120 degrees |
| Delay time | 30 s to 60 s |
| Sensitivity range | 7 or less lux |
| Applicable load | incandescent, exhaust fan, energy-saving lamp, fluorescent lamp,
LED lamp |
Features:
The advantages of the intelligent switch are good stability, fast
transmission speed and strong anti-interference ability. The
intelligent switch uses a special signal line alone, and it is not
subject to radiation clutter such as power lines and radios, and
the operation stability of the product is very strong. Stability in
terms of performance will determine the speed and immunity to
interference of the transmitted signal.
The product adopts good sensitivity detector. It gathers
automatism, convenient safe, saving-energy and practical functions.
It is easy to install and used widely.
matters needing attention
1. Please shut off the power when installing the switch after
operation in;
2. The switch in the dark to work, don't work during the day;
3. When installation to avoid glare, and light distance is greater
than 0.5 m;
4. This switch is adapted to the light bulbs, energy-saving lamps,
and the load power of 200 w or less.Do not short circuit, circuit
wrong or overload use;
5. When this switch is installed into the wall type 1.2 2 m high,
like a type suction a top height should be between 3 to 4 meters,
otherwise affect the sensitivity of switch;

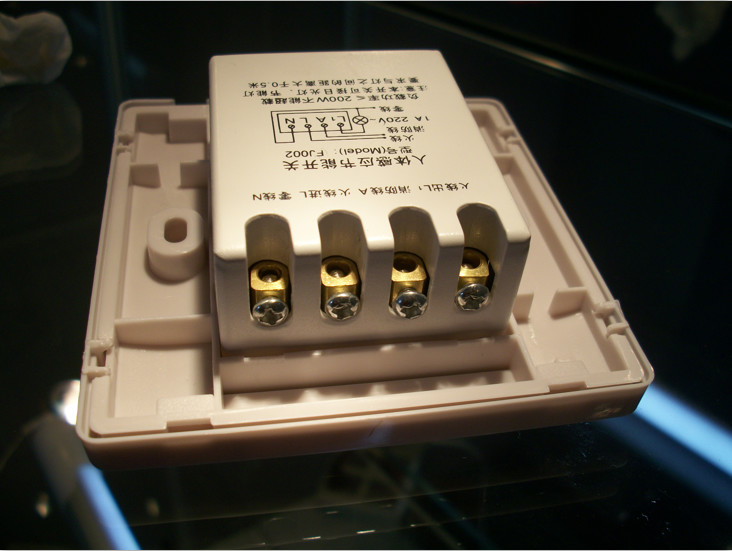

6. This product USES the applicable four wire connection mode
design, according to the national electrical standard, see chart;
7. Then good, after the power supply switch automatically first
try, after a few seconds into the working state, our switch three
years warranty in normal use.(not including artificial improper
use)
Notes:
Electrician or experienced human can install it.
The unrest objects cannot be regarded the installation basis-face.
In front of the detection window there are not hinder or unrest
objects effecting detection.
