Wall mounted automatic induction infrared pir motion sensor switch for staircase AC 170 - 250V Energy saving

Main technical parameters

The matters needing attention

1. Please shut off the power when installing the switch after operation in;
2. The switch in the dark to work, don't work during the day;
3. When installation to avoid glare, and light distance is greater than 0.5 m;
4. This switch is adapted to the light bulbs, energy-saving lamps, and the load power of 200 w or less.Do not short circuit, circuit wrong or overload use;
5. When this switch is installed into the wall type 1.2 2 m high, like a type suction a top height should be between 3 to 4 meters, otherwise affect the sensitivity of switch;
6. This product USES for three-wire system design of the connection mode, according to the national electrical standard, see chart;
7. Then good, after the power supply switch automatically first try, after a few seconds into the working state, our switch three years warranty in normal use.(not including artificial improper use)

Notes

Electrician or experienced human can install it.

The unrest objects cannot be regarded the installation basis-face.

In front of the detection window there are not hinder or unrest objects effecting detection.

The security sensor should be wired to its own switch. Before installation/maintenance, the electrical supply should be isolated.Switching off the wall switch is NOT suffcient isolation to prevent electrical shock.

About Us

Shenzhen Yuan Fang Hua Technology Co., Ltd. has been committed to the infrared induction switch products sales since 2011. The company is located in the shenzhen special economic zone of China, a borders inland, near Hong Kong, Macao, Taiwan and overseas. Geographical position advantageous. We have many experienced engineers and production expert, and it can guarantee the quality of the products.

We also has bridle-wise manage team ,design team and QC team ,and can supply customer their desired sample in the earliest date , arrange your order correctly, strictly control the mass production quality and lead time , and let the business goes smoothly !

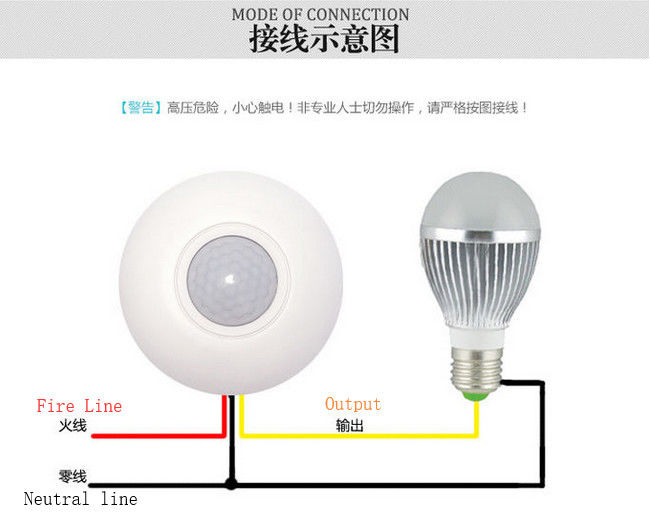

Install the chart
