Human Sensor Module , Lamp bar induction , Wardrobe induction lamp

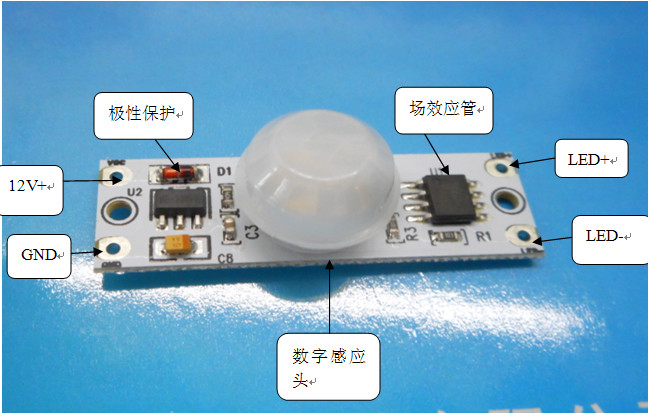

Human Sensor Module
Purpose: widely used in hard lamp bar, table lamp, bedroom lamp,
door lock lamp, cabinet lamp, kitchen cabinet, lamp box,
advertising lamp and so on. This product adopts the digital sensor
head, the signal is stable, the anti-interference ability is
strong, the module small power is large, uses the installation
aspect and so on the characteristic. Second, working principle:
through the heat release of the human body, it can prolong the life
of LED lamp, and use the product safely, conveniently,
energy-saving and environmental protection. 3, performance
parameters:
| power supply | DC 12-24V |
| output power | 30W |
| standby current | 0.01mA |
| induction delay time | 30 ≤ 50 seconds (according to guest request) |
| induction distance | 3 ≤ 5 m |
| induction angle | 130 degrees up and down |
| PCB structure size | 39*12*15mm |
Product Features:
1. Low power consumption, small size, easy to install
2. Internal use of digital signal processing, pit interference
strong
3. High sensitivity, reliability, and can be widely used in
automatic sensing circuit
4. Repeatable trigger mode: that is, after the induction output is
high, in the delay period, if the body in its induction range of
activities, the output will remain high until the delay after the
person to become Low level. (Ie, the sensing module automatically
detects a delay period after each activity of the human body, and
takes the last active time as the starting point for the delay
time)
Use: It can automatically and quickly open various types of
incandescent, fluorescent lamps, buzzer, automatic doors, electric
fans,automatic washing machine and dryer Machines and other
devices,is a hightech products. Especially suitable for
enterprises, hotels, shopping malls, warehouses and family aisles,
corridors and other sensitive Sense of region, or for the security
zone automatic lighting, lighting and alarm systems
About us:
Shenzhen Yuan Fang Hua Technology Co., Ltd. was founded in 2011,
mainly the production of the human body induction switch, infrared
reflection switch, voice switch, optical switch, microwave
induction switch, capacitive touch switch, control switch, mobile
phone socket and all kinds of human body induction induction module
and other products, the company in product development, production,
sales and service integration of high-tech manufacturing
enterprises will continue to increase R & D and production capacity
of its own, pioneering and innovative, to provide customers with
high quality products.
