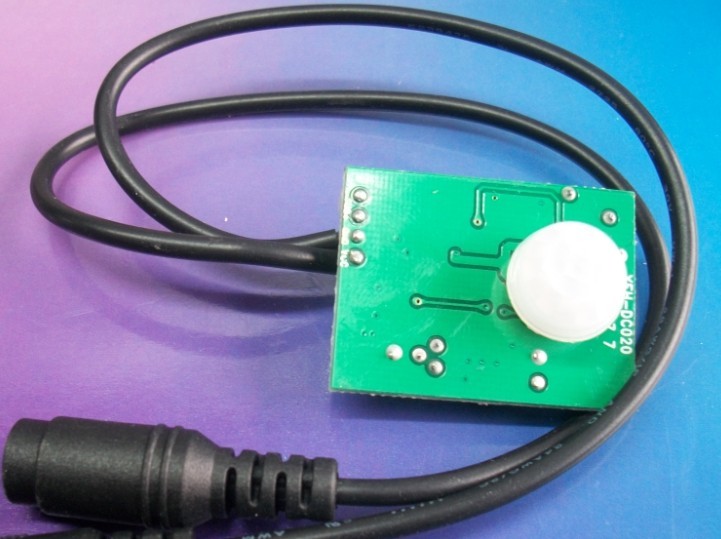

Human Sensor Module DC 12V Infrared Reflector Switch for LED lights
Infrared technology in the automatic control products, when someone
enters the switch induction range, special sensors to detect the
change of the human body infrared spectrum, automatic output high
level, people don't leave the induction range, will continue to
output high level;After the people left, switch delay shut down
automatically loads.High sensitivity, strong reliability, which are
widely used in all kinds of automatic induction electrical
equipment.
| Delay time | the factory for 30 seconds, with adjustable |
| Ultra-low power consumption | its power < 0.005 W.. |
| Wide voltage design | standard 12 VDC. |
| Trigger mode | can trigger continuously, continuous trigger. |
| The method of induction | passive |
| Working voltage | 12 dc standard |
| Infrared induction principle | the human body |
| Standby power | < 0.005 W |
| Output power | 2-50 w |
| Induction distance | 5-8 meters |
| Sensing head diameter | 10-12.7 MM |
| PCB size | 35.6 * 32 * 1.2 MM (structure and size according to customer
requirements) |
| Output | field effect tube (can be customized high/low level output) |
| Induction Angle | cone Angle of 140 degrees |
| Load range | LED lights |
| Optically controlled induction | LUX - 500 LUX (adjustable) no optical function (standard) |
| Ambient temperature | - 20 ℃ - + 50 ℃ |
| Scope of application | used for safe, chest, small night lights and anti-theft devices
such as all kinds of electrical appliances |
Note
1. Disable charged install and operate, load short circuit is
strictly prohibited. (Be sure to regulate their own power before
the switch, or peril)
2. Do not exceed the load power usage.
3. When the wall thickness of less than 10 cm, the switch is likely
to partition induction.
4. In the sensitive area, do not affect its non-stop movement of an
object or obstacle detection.
5.When install, metal objects blocking the sensor is prohibited.
